محل منبع: | چین |
نام تجاری: | ZH |
شماره مدل: | 2580-2520 2580/2520 |
مقدار حداقل تعداد سفارش: | یک قطعه |
---|---|
قیمت: | Negotiable |
جزئیات بسته بندی: | کارتن |
زمان تحویل: | 2-7 روز |
شرایط پرداخت: | L/C، D/A، D/P، T/T، Western Union، MoneyGram |
قابلیت ارائه: | 1000 عدد |
ذخایر: | گسترده | مدل: | 2580-2520 2580/2520 |
---|---|---|---|
اندازه (d*D*B): | 31.75x66.421x25.357 میلی متر | نوع: | غلتک مخروطی |
ساختار: | کروی | مواد: | GCr15 |
ویژگی: | ظرفیت باربری قوی | صنایع دقیق: | P0 P6 P5 P4 |
صنایع قابل استفاده: | معادن زغال سنگ راه آهن نیروگاه های چاپ نفت و سایر تجهیزات صنعتی | بسته بندی: | بسته صادرات استاندارد، مشتریان درخواست شده است |
خدمات پس از فروش: | پشتیبانی آنلاین، خدمات حرفه ای | ||
برجسته: | Durable Taper Roller Bearing,Professional Service Taper Roller Bearing,1x25.357mm Taper Roller Bearing,Professional Service Taper Roller Bearing,1x25.357mm Taper Roller Bearing |

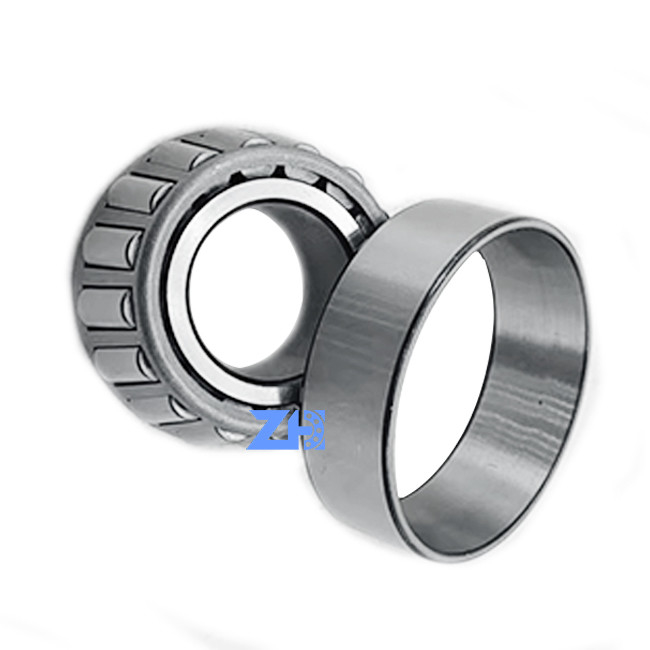

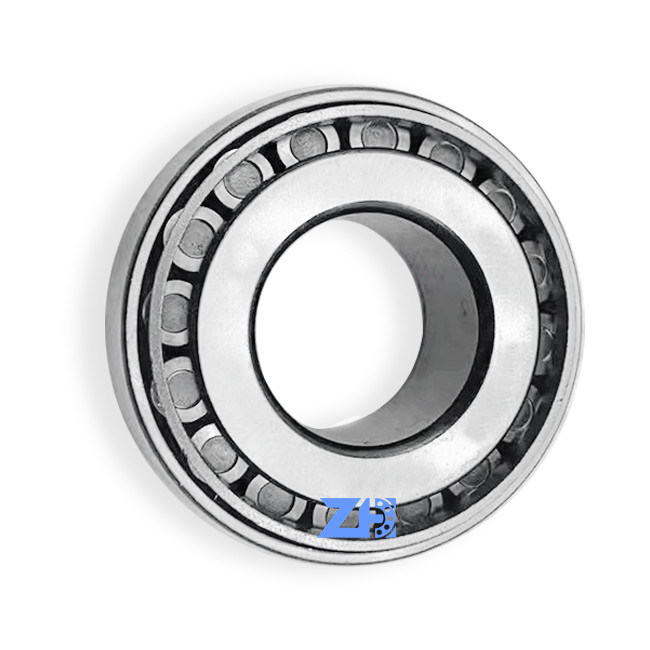

Taper Roller Bearing 2580-2520 2580/2520 size 31.75x66.421x25.357mm
Taper Roller Bearing Factory supply
Technical Parameters:
model |
2580-2520 2580/2520 |
Size(d*D*B) |
31.75x66.421x25.357mm |
Type | Taper Roller Bearing |
Precision | P0/P6/P5/P4 |
Feature |
Long Life,Stable Performance and Durable |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock |
Sufficient |
Product Description
A tapered roller bearing is a type of rolling-element bearing that is designed to handle both radial and axial loads by carrying them in one direction. It consists of multiple tapered rollers, typically arranged in a single row, allowing for the bearing to handle high radial and thrust loads. Tapered roller bearings are commonly used in automotive applications, such as wheel bearings, as well as in industrial machinery and equipment where heavy loads and high speeds are present.
Tapered roller bearings typically have a cage or retainer that separates and maintains the proper spacing between the rolling elements. The cage prevents the rollers from contacting each other, reducing friction and wear. Common cage materials include steel, brass, or synthetic resins.
Tapered roller bearings can be used in different arrangements to accommodate specific load and mounting requirements. These arrangements include single-row, double-row, and four-row configurations. Double-row tapered roller bearings have a higher load-carrying capacity and are often used in heavy-duty applications.
High radial and axial load capacity: Tapered roller bearings are designed to handle both radial and axial loads efficiently, making them suitable for applications requiring heavy load-bearing capabilities.
High accuracy: These bearings are manufactured to precise tolerances, ensuring consistent performance and minimal internal clearances for smooth operation.
Other bearing model catalog:
Cone Bearing | Cup Bearing | d(mm) | D(mm) | T(mm) |
EE107060 | 107105CD | 152.4 | 268.3 | 160.3 |
EE450601 | 451215CD | 152.4 | 308.0 | 200.0 |
HH234048 | HH234011CD | 152.4 | 308.0 | 200.0 |
HH234049 | HH234011CD | 152.4 | 308.0 | 200.0 |
81606 | 81963CD | 154.0 | 244.5 | 108.0 |
46780 | 46720CD | 158.8 | 225.4 | 85.7 |
81629 | 81963CD | 160.0 | 244.5 | 108.0 |
81630 | 81963CD | 160.0 | 244.5 | 108.0 |
HM237532 | HM237510CD | 160.3 | 288.9 | 142.9 |
46790 | 46720CD | 165.1 | 225.4 | 85.7 |
67780 | 67720CD | 165.1 | 247.7 | 103.2 |
M235145 | M235113CD | 165.1 | 254.0 | 101.6 |
94649 | 94114CD | 165.1 | 288.9 | 142.9 |
HM237535 | HM237510CD | 165.1 | 288.9 | 142.9 |
46792 | 46720CD | 166.7 | 225.4 | 85.7 |
67782 | 67720CD | 168.3 | 247.7 | 103.2 |
M235149 | M235113CD | 170.0 | 254.0 | 101.6 |
94675 | 94114CD | 171.5 | 288.9 | 142.9 |
67786 | 67720CD | 174.6 | 247.7 | 103.2 |
67787 | 67720CD | 174.6 | 247.7 | 103.2 |
94687 | 94114CD | 174.6 | 288.9 | 142.9 |
HM237542 | HM237510CD | 174.6 | 288.9 | 142.9 |
36990 | 36920CD | 177.8 | 227.0 | 66.7 |
67790 | 67720CD | 177.8 | 247.7 | 103.2 |
67791 | 67720CD | 177.8 | 247.7 | 103.2 |
M238840 | M238810CD | 177.8 | 269.9 | 119.1 |
94700 | 94114CD | 177.8 | 288.9 | 142.9 |
HM237545 | HM237510CD | 177.8 | 288.9 | 142.9 |
HM237545H | HM237510CD | 177.8 | 288.9 | 142.9 |
EE222070 | 222127CD | 177.8 | 320.7 | 185.7 |
H239640 | H239612CD | 177.8 | 320.7 | 185.7 |
93708 | 93127CD | 180.0 | 317.5 | 146.1 |
67883 | 67820CD | 184.2 | 266.7 | 103.2 |
67884 | 67820CD | 187.3 | 266.7 | 103.2 |
M238849 | M238810CD | 187.3 | 269.9 | 119.1 |
H239649 | H239612CD | 187.3 | 320.7 | 185.7 |
67885 | 67820CD | 190.5 | 266.7 | 103.2 |
93750 | 93127CD | 190.5 | 317.5 | 146.1 |
EE420751 | 421451CD | 190.5 | 368.3 | 193.7 |
67887 | 67820CD | 192.1 | 266.7 | 103.2 |
LM739749 | LM739710CD | 196.9 | 257.2 | 85.7 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! !
Miss Ashley
Business Phone:+8618520363009
WhatsApp:+8618520363009
WeChat:+86 18520363009
Email:gzzhbearing@163.com
Welcome your consultation, if you have any questions, please feel free to contact Ashley.
