محل منبع:
چین
نام تجاری:
QIEAL ZH
شماره مدل:

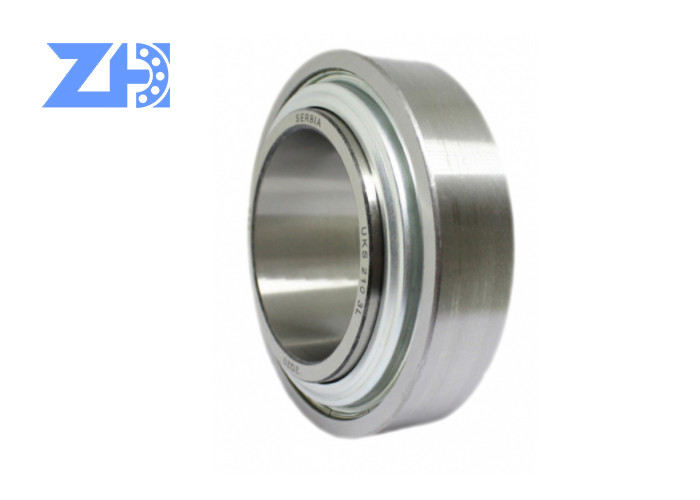

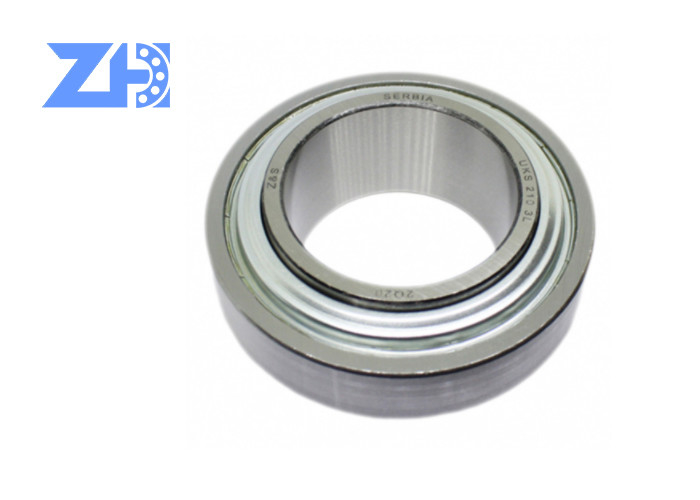

UKS 210 3L
| شماره گوشواره | قطر شفت | دیم ensions/mm | |||||||||
| که در | میلی متر | دی | بی | بودن | r | n | متر | جی | ds | ||
| UC201 | 12 | 47 | 31 | 17 | 1 | 12.7 | 18.3 | 5 | M6×1.0 | ||
| UC202 | 15 | ||||||||||
| UC203 | 17 | ||||||||||
| UC204 | 20 | ||||||||||
| UC201-8 | 1/2 | 1.8504 | 1.2205 | 0.6693 | 0.039 | 0.5 | 0.7205 | 0.1969 | 1/4-28 | ||
| UC202-10 | 5/8 | ||||||||||
| UC203-11 | 11/16 | ||||||||||
| UC204-12 | 3/4 | ||||||||||
| UC205 | 25 | 52 | 34.1 | 17 | 1.5 | 14.3 | 19.8 | 5.0 | M6×1.0 | ||
| UC205-14 | 7/8 | 2.0472 | 1.3425 | 0.669 | 0.059 | 0.563 | 0.7795 | 0.1969 | 1/4-28 | ||
| UC205-15 | 15/16 | ||||||||||
| UC205-16 | 1 | ||||||||||
| UC206 | 30 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5.0 | M6×1.0 | ||
| UC206-17 | 1 1/16 | 2.4409 | 1.5 | 0.748 | 0.059 | 0.626 | 0.874 | 0.1969 | 1/4-28 | ||
| UC206-18 | 1 1/8 | ||||||||||
| UC206-19 | 1 3/16 | ||||||||||
| UC206-20 | 1 1/4 | ||||||||||
| UC207 | 35 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6.5 | M8×1.0 | ||
| UC207-20 | 1 1/4 | 2.8346 | 1.689 | 0.787 | 0.079 | 0.689 | 1 | 0.2559 | 5/16-24 | ||
| UC207-21 | 1 5/16 | ||||||||||
| UC207-22 | 1 3/8 | ||||||||||
| UC207-23 | 1 7/16 | ||||||||||
| UC208 | 40 | 80 | 49.2 | 21 | 2 | 19.0 | 30.2 | 8.0 | M8×1.0 | ||
| UC208-24 | 1 1/2 | 3.1496 | 1.689 | 0.787 | 0.079 | 0.689 | 1 | 0.2559 | 5/16-24 | ||
| UC208-25 | 1 9/16 | ||||||||||
| UC209 | 45 | 85 | 49.2 | 22 | 2 | 19.0 | 30.2 | 8.0 | M8×1.0 | ||
| UC209-26 | 1 5/8 | 3.3465 | 1.937 | 0.866 | 0.079 | 0.748 | 1.189 | 0.315 | 5/16-24 | ||
| UC209-27 | 1 11/16 | ||||||||||
| UC209-28 | 1 3/4 | ||||||||||
| UC210 | 50 | 90 | 51.6 | 24 | 2 | 19.0 | 32.6 | 10.0 | M10×1.25 | ||
| UC210-30 | 1 7/8 | 3.5433 | 2.0315 | 0.9449 | 0.079 | 0.748 | 1.2835 | 0.3937 | 2003-8-24 | ||
| UC210-31 | 1 15/16 | ||||||||||
| UC211 | 55 | 100 | 55.5 | 25 | 2.5 | 22.2 | 33.4 | 10.0 | M10×1.25 | ||
| UC211-32 | 2 | 3.637 | 2.189 | 0.9843 | 0.098 | 0.874 | 1.315 | 0.3937 | 3/8-24 | ||
| UC211-34 | 2 1/8 | ||||||||||
| UC211-35 | 2 3/16 | ||||||||||
| UC212 | 60 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10.0 | M10×1.25 | ||
| UC212-36 | 2 1/4 | 4.3307 | 2.563 | 1.063 | 0.98 | 1 | 1.563 | 0.3937 | 3/8-24 | ||
| UC212-38 | 1 3/8 | ||||||||||
| UC212-39 | 1 7/16 | ||||||||||
| UC213 | 65 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10.0 | M10×1.25 | ||
| UC213-40 | 2 1/2 | 4.7244 | 2.5630 | 1.1024 | 0.098 | 1.0 | 1.563 | 0.3937 | 3/8-24 | ||
| UC214 | 70 | 125 | 74.6 | 30 | 2.5 | 30.2 | 44.4 | 12.0 | M12×1.25 | ||
| UC214-44 | 2 3/4 | 4.9213 | 2.9370 | 1.1811 | 0.098 | 1.1890 | 1.748 | 0.4724 | 7/16-20 | ||
| UC215 | 75 | 130 | 77.8 | 32 | 2.5 | 33.3 | 44.5 | 12.0 | M12×1.5 | ||
| UC215-47 | 2 15/16 | 5.1181 | 3.063 | 1.2598 | 0.098 | 1.311 | 1.752 | 0.4724 | 7/16-20 | ||
| UC215-48 | 3 | ||||||||||
| UC216 | 80 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14.0 | M12×1.5 | ||
| UC216-50 | 3 1/8 | 5.5118 | 3.2520 | 1.2992 | 0.118 | 1.3110 | 1.941 | 0.5512 | 7/16-20 | ||
| UC217 | 85 | 150 | 85.7 | 35 | 3 | 34.1 | 51.6 | 14.0 | M12×1.5 | ||
| UC217-52 | 3 1/4 | 5.9055 | 3.3740 | 1.378 | 0.118 | 1.3425 | 2.0315 | 0.5512 | 7/16-20 | ||
| UC218 | 90 | 160 | 96.0 | 37 | 3 | 39.7 | 56.3 | 12.0 | M12×1.5 | ||
| UC218-56 | 3 1/2 | 6.2992 | 3.7795 | 1.4567 | 0.118 | 1.5630 | 2.2163 | 0.5905 | 1/2-20 |
||
|
1.Q: آیا اندازه جزئیات برای بلبرینگ را می دانید؟
|
درخواست خود را به طور مستقیم به ما بفرستید
